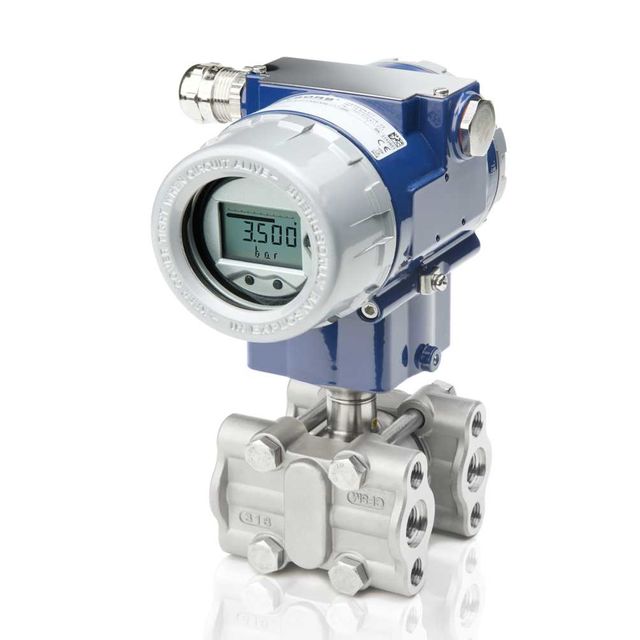

precision pressure transmitter XMD
CEExHART

XMD

stainless steel sensor
process, oil and gas industry

The differential pressure transmitter XMD has been especially designed for the process industry and can be used for level measurement of closed, pressurized tanks, pump or filter controlling, etc.


Another attribute is the possibility to switch the output signal from linear to square root extraction by what the flow rate of the medium can be issued.

Inquiry of product

Features

  • nominal pressure: 0 ... 75 mbar up to 0 ... 20 bar
  • IS-version: Ex ia= intrinsically safe version
  • output signal: linear or square root extraction
  • HART®-communication
  • two chamber aluminium die cast case or stainless field housing
  • turn-down 1:10
  • static overpressure 130 bar
  • stainless steel diaphragm 1.4401
  • accuracy: 0.1 %
  • high overpressure capability

Optional Features

  • IS-version
    Ex d = flameproof enclosure
  • SIL2 - version
    according to IEC 61508 / IEC 61511
  • with integrated display and operating module

Areas of application

  • mechanical and plant engineering mechanical and plant engineering
  • chemical industry chemical industry
  • energy industry energy industry
  • HVAC HVAC
  • food and beverage food and beverage
  • oil and gas industry oil and gas industry
  • packaging and paper industry packaging and paper industry

Media

  • fuels and oils fuels and oils
  • water water
